86' Boom Lift Rental
86' Boom Lift Key Features
Reach full elevation in less than 70 seconds.
Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions.
Equipped with a fuel-efficient Tier 4 engine.
gET A qUOTE nOW

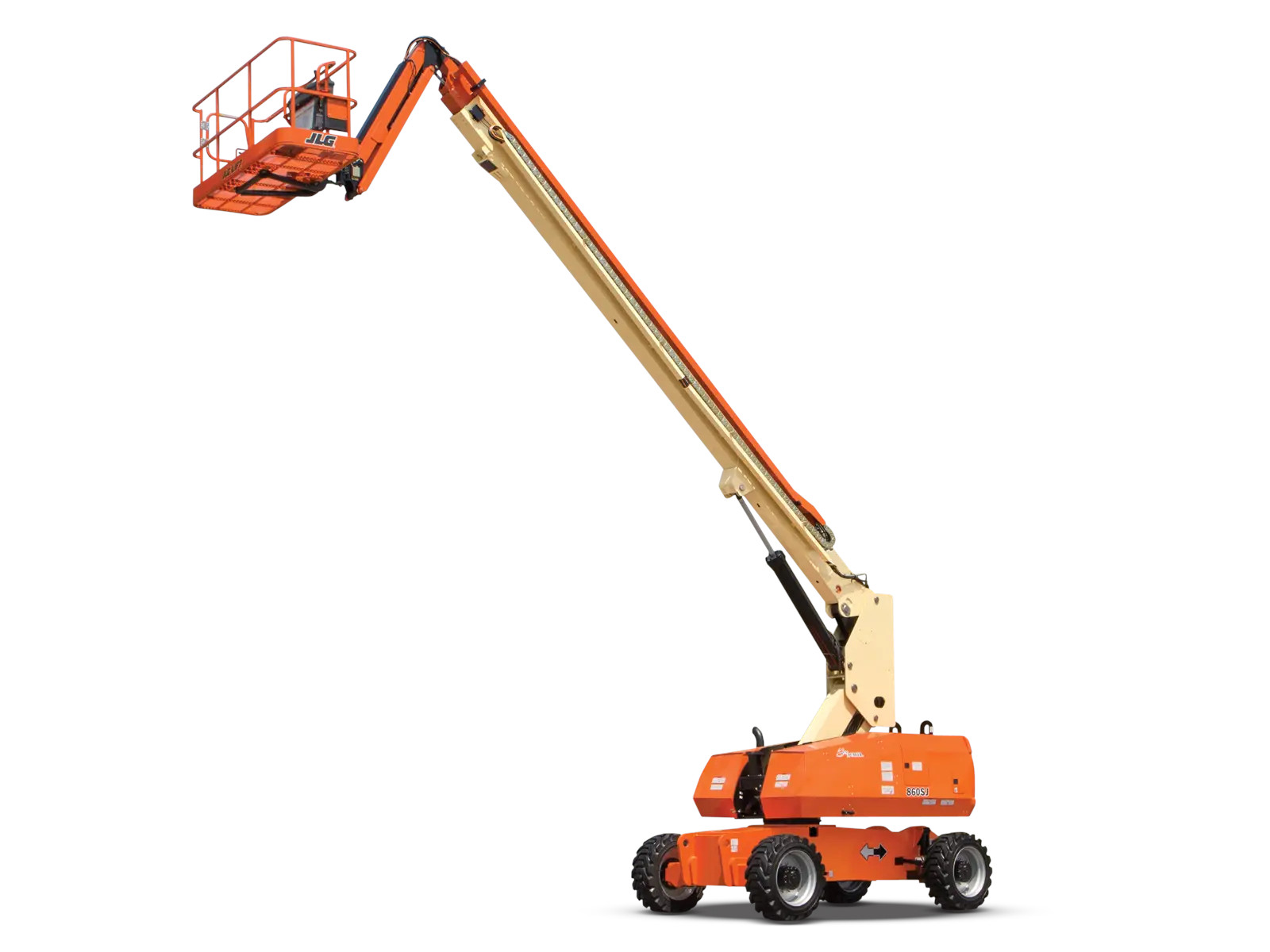

86' Boom Lift Specifications
-
Product Overview
- Make: JLG
- Model: 860SJ
- Equipment Type: Straight Boom Lift Rental
- Engine Type: Fueled
- Terrain Type: Concrete
-
Product Features
- Platform Height: 86'
- Platform Capacity: 750 Lbs
- Platform Size: 96"L X 36"W
- Horizontal Outreach: 49' 6"
- Dimensions: 28' 4"L X 98"W
- Stowed Height: 8' 4"
- Machine Weight: 36,888 Lbs

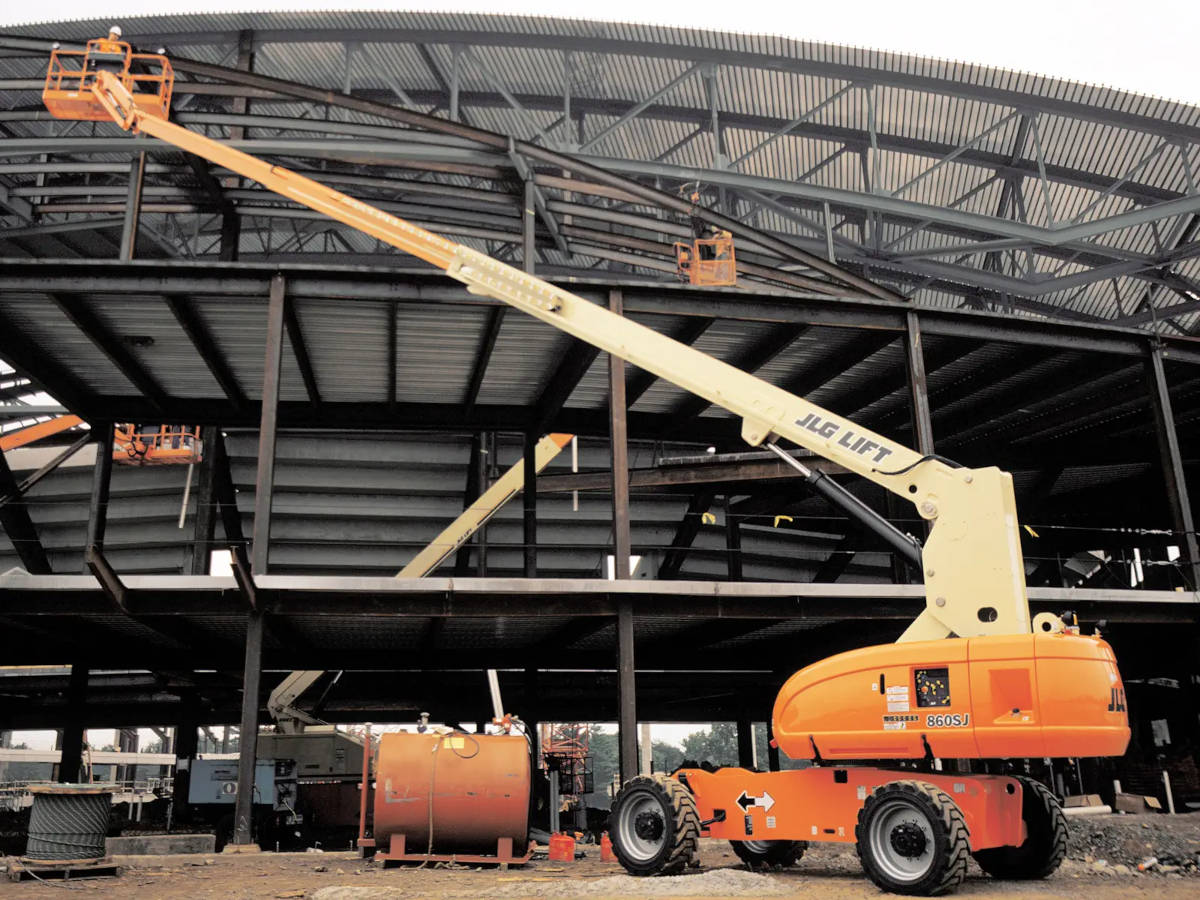

86' Boom Lift Description
One of the heavy duty boom lifts! The JLG 86' boom lift is designed to provide safe access to the larger levels of height. With a maximum platform height of 86 feet and a horizontal outreach of 56 feet, this boom lift is perfect for larger construction projects and working with industrial sized buildings maintenance.
The JLG 86 foot boom lift features a sturdy steel frame and a spacious platform that can accommodate 2 people, equipment, and materials. With a maximum lift capacity of up to 500 pounds. The platform CAN be rotated 360 degrees, providing easy operation and maneuverability for operators.
Because of its ability to reach great heights, there are added safety features including an automatic leveling system, emergency stop button, and a fall protection system.
To request a free quote, please fill out our Request Estimate form or give us a call to speak with a representative!
86 foot Boom Lift Questions
The maximum reach of an 86 ft straight boom lift is typically around 80-86 feet vertically, depending on the specific model.
The weight capacity of an 86 ft boom lift typically ranges from 500 to 1,000 pounds, depending on the model and manufacturer.
Some are electric-powered for indoor use, while others are diesel-powered and more suitable for outdoor applications.
There are typically two types of power options: electric or diesel. Electric models are quieter and better suited for indoor use, while diesel models are designed for rugged, outdoor environments.
Yes, operators must have training and certification in accordance with OSHA (Occupational Safety and Health Administration) regulations.
An 86 ft straight boom lift typically weighs between 30,000 to 40,000 pounds, depending on the model and manufacturer.
Standard safety features include an emergency stop button, fall protection lanyard attachment points, and platform controls with safety interlocks.
Straight boom lifts are designed for rough terrain and can operate on uneven surfaces, but this depends on the specific tires and drive systems of the model.
Boom lifts generally move slowly for safety reasons, with travel speeds around 3-5 mph on the ground.
Most manufacturers recommend not operating boom lifts in winds exceeding 20-25 mph for safety reasons.
A straight boom lift has a single, extendable arm that moves in a straight line, while an articulated boom lift has multiple sections that can bend or pivot, allowing for more versatile movement.
3 Key Benefits
Extended Reach for High and Remote Locations
The primary advantage of a straight boom lift is its reach. Unlike articulated boom lifts, which have multiple joints, a straight boom lift extends in a straight line, giving it the ability to reach heights ranging from 40 to 180 feet. This feature makes these machines perfect for projects that require access to tall structures, such as high-rise buildings, bridges, or telecommunications towers.
With a telescopic boom lift, you can work directly over obstacles without needing to reposition the equipment frequently. This capability is invaluable in construction, maintenance, or tree trimming, where efficiency and precision are essential.
Stability and Precision
One of the main concerns when working at significant heights is stability. Straight boom lifts are designed with this in mind, providing a solid, stable platform even at full extension. The telescopic design makes sure that the platform remains steady, allowing workers to focus on their tasks without worrying about swaying or instability.
Along with stability, straight boom lifts offer perfect positioning. Since the boom extends in a straight line, operators can easily maneuver to the exact height and position required for the job. This precision is especially useful in industries like window washing, electrical installations, or large-scale painting projects, where a steady hand is vital.
Increased Load Capacity
Many straight boom lifts are designed to handle heavier loads, accommodating multiple workers, tools, and equipment at the same time. This makes them a great choice for projects that require more than one operator or involve heavy-duty equipment. By increasing the lift's load capacity, you can reduce downtime and improve overall efficiency, since fewer trips are needed to transport workers and materials to the elevated area.
As an example, in a construction setting, a straight boom lift allows workers to bring necessary tools and supplies to the work area without making multiple ascents, saving time and reducing the physical strain on workers.
